- Interior and exterior weather seals
- Overall U values of 1.4 or better
- 60mm thick door leaf which is 36% thicker than GRP composite doors
- PAS 24 compliant
- High security locking system
- 3 star lock cylinders that are anti snap, bump, pick and drill
- Choice of two lock styles – 2 hook multipoint or slam lock if the external bar handle is selected.
- All doors manufactured using 1.5mm aluminium sheets as standard
- Three heavy duty and adjustable hinges
- Double glazed 6.8mm laminated glass used as standard
- Massive choice letter plates, handles and knockers available in a range of colours.
- Design your door, your way

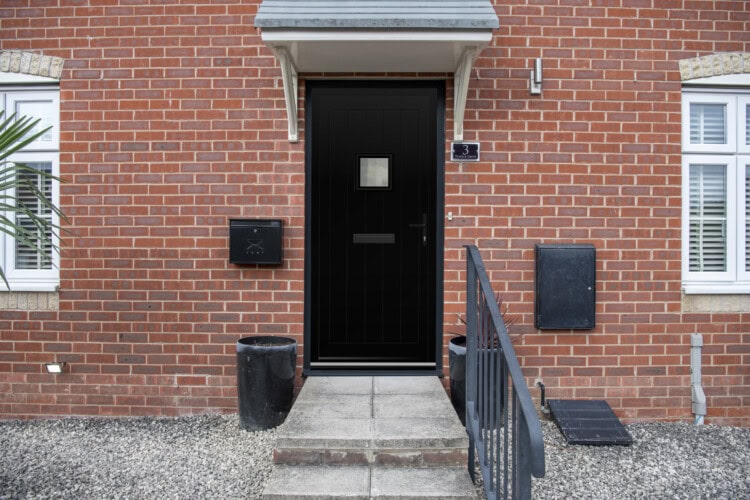

Signature Aluminium Abbey Square
£1,500.00
The Abbey Square Signature door boasts a traditional look that is perfect for traditional looking homes. The door boasts a warm finish thanks to it’s detailed mouldings but it is strong, solid and comes with a no bow guarantee and a small glazed insert to allow some natural light into your interior space.
You can pick a bespoke size that is unique to you to enhance your home with a beautiful door that is designed and built to last. We offer the same style completely solid and with glazed inserts in various shapes, which can be chosen by navigating to the specific products pages on our website.
Size options
The sizes displayed on our website are the manufacturing sizes for the doors themselves, this includes the overall height from the bottom of the cill and the overall width of the product itself.
As standard we offer our entrance doors are sat on an 85mm external cill but deeper cills are available or you can order without a cill.
All the entrance doors open inwards into the property.
The masons opening where the door needs to be installed into needs to be slightly larger so the door can be installed level and plumb into the opening. Read the section below on ‘preparing for installation’ for information on measuring and preparing the opening for your new entrance doors.
Section Drawing:
20mm Add on’s for the side or sides are available if required – If you need more clearance for your plaster line we have side extensions available in 20mm and 42mm, simply make a note if these are required upon ordering.
Frame colour options
The doors themselves are available in our two most popular colours. The RAL colours for the two options are RAL 9005 jet black and RAL 7016 anthracite grey in a matt finish. We also offer the same two RAL colours in a premium textured finish at no extra cost, the textured finish doesn’t show up finger prints as much and adds a unique element to the doors.
Choose your colour
As well as four most popular colours we are happy to offer a wider range of colours at no extra cost. Simply configure your door but state in the customer notes which RAL colour you would like the doors powder coated to and we will supply your new front door in the chosen colour of your choice. The additional RAL colour options are as follows:
- RAL 1015 Light Ivory
- RAL 3004 Purple Red
- RAL 5011 Steel Blue
- RAL 6009 Fir Green
- RAL 8014 Sepia Brown
- RAL 8019 Grey Brown
- RAL 9010 Pure White
- RAL 9001 Cream
- RAL 9006 Metallic White
- RAL 9007 Grey Aluminium
- RAL 7032 Pebble Grey
- RAL 7038 Agate Grey.
Please note – The external steel bar handle is not available with the Woodchester design.
The steel bar handle is only available and suitable for modern door styles.
Rather than a lever handle you can choose an external knob by letting us know in the notes section below. The external door knob acts as a feature and gives the door an even more traditional appearance. Because there is no lever handle on the outside the door will automatically lock when it is closed, so you will need to use the key to unlock and open the door again.
Threshold options – Flush bottom track sat on an external cill
Fully weather rated option
The flush bottom track option creates a proper weather seal as the door panel closes against the small rebate. From the underside of the cill to the top of the internal rebate the measurement is 31mm so the internal floor level can be sat almost flush against the top of the rebate to create a seamless transition from inside to out with a flush internal floor finish.
Flush Threshold Bottom Track With no Cill
The door panels swing into the property so set your floor level against the 11mm profile at the foot of the door. This will ensure a seamless transition from inside to out.
INTERNAL HANDLE COLOUR
Clean and simple in our most popular colours.
Graphite stands out as a feature whereas the black and 7016 options blend in with the door style for a more seamless appearance.
Stainless Steel Internal Handle
Choosing this option also means that the internal escutcheon and thumb turn is stainless steel also for a premium and standout aesthetic.
The nu mail letter plates are available in our standard colours of black, graphite and chrome.
If you pick door colour other than grey or black we can also offer the letter boxes in white and gold.
Fitters pack
General glazing tools are required to install the Smarts Signature doors, our fitters pack is available to ensure you have the correct materials to properly install the entrance door and includes:
- 1 x Can of Expanding foam
- 12 x each size levelling packers (2mm black, 3mm white, 4mm grey and 5mm blue)
- 3 x Tubes of Silicone (Black, Anthracite or white)
- 4 x Wingtip steel fixings
- 12 x Concrete fixings.
Maintenance pack
Although maintenance is minimal it is important to look after & maintain your aluminium entrance door. Our maintenance pack includes 1 x tube of premium quality glass cleaner, 1 x tube of silicone spray & a none abrasive microfibre cloth.
- Interior and exterior weather seals
- Overall U values of 1.4 or better
- 60mm thick door leaf which is 36% thicker than GRP composite doors
- PAS 24 compliant
- High security locking system
- 3 star lock cylinders that are anti snap, bump, pick and drill
- Choice of two lock styles – 2 hook multipoint or slam lock if the external bar handle is selected.
- All doors manufactured using 1.5mm aluminium sheets as standard
- Three heavy duty and adjustable hinges
- Double glazed 6.8mm laminated glass used as standard
- Massive choice letter plates, handles and knockers available in a range of colours.
- Design your door, your way
